52103594 | LAPP
Adapter/extension, M25 to M32, 36 mm, IP68/IP69, metal, 52103594
Order No.: 33P3423
EAN: 4064728051580
MPN:
52103594
SKINDICHT HYGIENIC E-M 25/32
Series: SKINDICHT HYGIENIC E-M
Unit Price (€ / pc.)
53.5976 € *
Standard delivery time from the manufacturer is: On Request

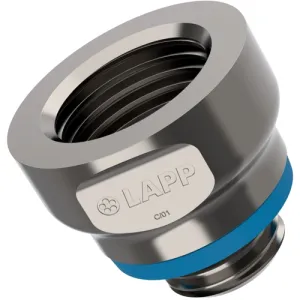

Adapter, 52103594, LAPP
The 52103594 is a high-quality adapter, suitable for hygienic critical areas. The adapter corrects the size difference between the connection thread of a cable gland and the threaded hole in an enclosure. The innovative hygienic design prevents food machines, facilities, or components from risk of contamination. The product is suitable for use in applications where mechanical and chemical stability to very aggressive media is required and offers quality and safety in food, pharmaceutical and chemical industry.
Features
- Food and Beverage
- Mechanical and plant engineering
- Oil and Gas
- Good chemical resistance
- Heat-resistant
- Temperature-resistant
- Waterproof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Thread size | M25 to M32 | |
| Degree of protection (IP) | IP68/IP69 | |
| Length | 26.5 mm | |
| max. operating temperature | 220 °C | |
| min. operating temperature | -20 °C | |
| spanner size | 36 mm | |
| Material | stainless steel | |
| Product type | adapter/extension |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
