52103593 | LAPP

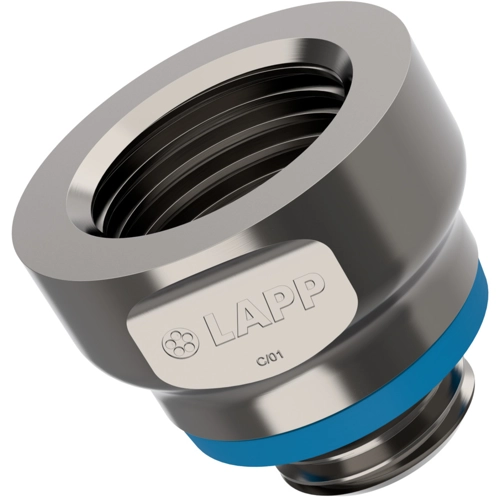

Adapter/extension, M20 to M25, 29 mm, IP66/IP68/IP69, metal, 52103593
Order No.: 33P3422
EAN: 4064728051573
MPN:
52103593
SKINDICHT HYGIENIC E-M 20/25
Series: SKINDICHT HYGIENIC E-M
Unit Price (€ / pc.)
58.8812 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Adapter, 52103593, LAPP
The 52103593 is a high-quality adapter, suitable for hygienic critical areas. The adapter corrects the size difference between the connection thread of a cable gland and the threaded hole in an enclosure. The innovative hygienic design prevents food machines, facilities, or components from risk of contamination. The product is suitable for use in applications where mechanical and chemical stability to very aggressive media is required and offers quality and safety in food, pharmaceutical and chemical industry.
Features
- Food and Beverage
- Mechanical and plant engineering
- Oil and Gas
- Good chemical resistance
- Heat-resistant
- Temperature-resistant
- Waterproof
Technical specifications
| Colour | metal | |
| Degree of protection (IP) | IP66/IP68/IP69 | |
| Length | 24 mm | |
| Product type | adapter/extension | |
| min. operating temperature | -20 °C | |
| Material | stainless steel | |
| spanner size | 29 mm | |
| max. operating temperature | 220 °C | |
| Thread size | M20 to M25 |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
