52103591 | LAPP
Adapter/extension, M12 to M16, 20 mm, IP66/IP68/IP69, metal, 52103591
Order No.: 33P3424
EAN: 4064728051559
MPN:
52103591
SKINDICHT HYGIENIC E-M12/16
Series: SKINDICHT HYGIENIC E-M
Unit Price (€ / pc.)
38.8773 € *
Standard delivery time from the manufacturer is: On Request

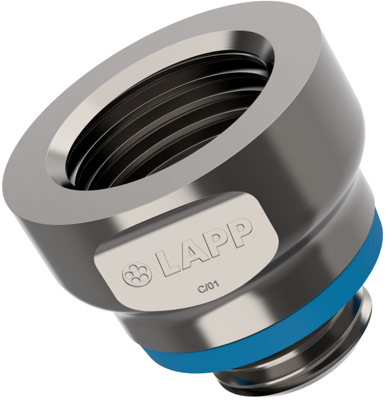

Adapter, 52103591, LAPP
The 52103591 is a high-quality adapter, suitable for hygienic critical areas. The adapter corrects the size difference between the connection thread of a cable gland and the threaded hole in an enclosure. The innovative hygienic design prevents food machines, facilities, or components from risk of contamination. The product is suitable for use in applications where mechanical and chemical stability to very aggressive media is required and offers quality and safety in food, pharmaceutical and chemical industry.
Features
- Food and Beverage
- Mechanical and plant engineering
- Oil and Gas
- Good chemical resistance
- Heat-resistant
- Temperature-resistant
- Waterproof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | adapter/extension | |
| Thread size | M12 to M16 | |
| spanner size | 20 mm | |
| Length | 20.5 mm | |
| Degree of protection (IP) | IP66/IP68/IP69 | |
| Material | stainless steel | |
| Colour | metal | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 220 °C |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
