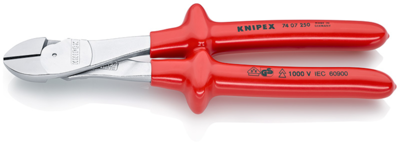

74 07 250 | Knipex
VDE power side cutter, 250 mm, 510 g, cut capacity (–/4.6/3.5/3 mm), 74 07 250
Order No.: 20L2850
EAN: 4003773018421
MPN:
74 07 250
7407250
Unit Price (€ / pc.)
59.3810 € *
Available: 0 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 1 Week **
Total Price:
59.38 € *
Price list
Quantity
Price per unit*
1 pcs.
59.3810 €
6 pcs.
53.4429 €
*incl. VAT plus shipping costs
**Subject to prior sale
With integrated forged axle for heaviest duty. Suitable for all types of wire including piano wire. High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio. Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened Length 250 mm: The 250-mm-long diagonal cutter is suitable for copper conductors up to 16 mm² and aluminium conductors up to 35 mm².
Technical specifications
| Version | power side cutter | |
| ESD protection | No | |
| Weight | 510 g | |
| Length | 250 mm | |
| Material | chromium-vanadium steel | |
| Cutting edge | with facet | |
| Cutting capicity (hard) | 3.5 mm | |
| Cutting capacity (medium-hard) | 4.6 mm | |
| Cutting capicity (Piano wire) | 3 mm | |
| 1000V Insulated | Yes |
Download
Logistics
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
