74 07 200 | Knipex

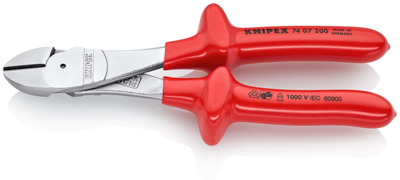

VDE power side cutter, 200 mm, 328 g, cut capacity (–/4.2/3/2.5 mm), 74 07 200
Order No.: 20L2845
EAN: 4003773018414
MPN:
74 07 200
7407200
Unit Price (€ / pc.)
55.2636 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
55.26 € *
Price list
Quantity
Price per unit*
1 pcs.
55.2636 €
6 pcs.
49.7420 €
*incl. VAT plus shipping costs
Subject to prior sale
With integrated forged axle for heaviest duty. Suitable for all types of wire including piano wire. High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio. Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | Yes | |
| ESD protection | No | |
| Cutting capicity (hard) | 3 mm | |
| Cutting edge | with facet | |
| Length | 200 mm | |
| Cutting capicity (Piano wire) | 2.5 mm | |
| Material | chromium-vanadium steel | |
| Weight | 328 g | |
| Version | power side cutter | |
| Cutting capacity (medium-hard) | 4.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
