17512 | Klauke
Insulated Wire end ferrule, 6.0 mm², 20 mm/12 mm long, DIN 46228/4, green, 17512
Order No.: 18H7412
EAN: 4012078000161
MPN:
17512
Unit Price (€ / pc.)
0.1547 € *
Available: 100 pcs.
Leadtime: 1 Week **
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1547 €
100 pcs.
0.1345 €
500 pcs.
0.1214 €
1000 pcs.
0.1059 €
5000 pcs.
0.0881 €
*incl. VAT plus shipping costs
**Subject to prior sale

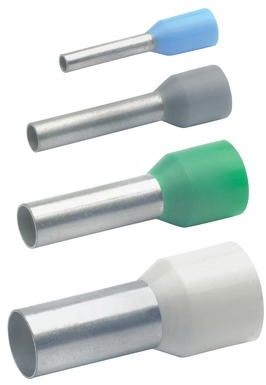

Wire end ferrule, 17512, KLAUKE
Insulated wire-end ferrule to DIN with Easy-Entry insulation for splice-free cable entry, colour code 2, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Colour | green | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 20 mm | |
| Cable cross-section | 6.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
