730 | Klauke
Insulated flat plug sleeve, 6.3 x 0.8 mm, 1.5 to 2.5 mm², AWG 16 to 14, brass, tin-plated, blue, 730
Order No.: 05F616
EAN: 4012078000437
MPN:
730
Unit Price (€ / pc.)
0.3927 € *
Available: 70 pcs.
Leadtime: 2 Weeks **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.3213 €
500 pcs.
0.2963 €
*incl. VAT plus shipping costs
**Subject to prior sale

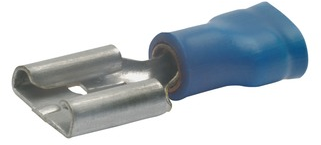

Insulated receptacle, 730, Klauke
Insulated flat receptacle for 6.3 x 0.8 mm flat plugs, 21 mm long, Cross-section: 1.5 to 2.5 mm², Colour: blue, Material: brass (CuZn), Tin-plated, Insulation sleeve: PVC, Temperature resistance: up to 70 °C.
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 16 to 14 | |
| Insulation colour | blue | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | Yes | |
| Length | 21 mm | |
| Cable cross-section | 1.5 to 2.5 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46245 |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
