7208 | Klauke
Insulated flat plug sleeve, 7.7 x 0.8 mm, 0.5 to 1.0 mm², AWG 20 to 18, brass, tin-plated, red, 7208
Order No.: 05F611
EAN: 4012078025300
MPN:
7208
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4641 €
50 pcs.
0.3927 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

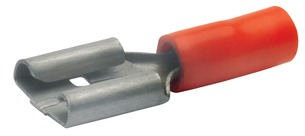

Insulated receptacle, 7208, Klauke
Insulated flat receptacle for 7.7 x 0.8 mm flat plugs, 25 mm long, Cross-section: 0.5 to 1.0 mm², Colour: red, Material: brass (CuZn), Tin-plated, Insulation sleeve: PVC, Temperature resistance: up to 70 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 18 | |
| Length | 25 mm | |
| Insulation colour | red | |
| Connection | crimp connection | |
| Suitable for | 7.7 x 0.8 mm | |
| Cable cross-section | 0.5 to 1.0 mm² | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
