46R6 | Klauke
Uninsulated angled tube cable lug, 50 mm², 6.4 mm, M6
Order No.: 07F1085
EAN: 4012078490443
MPN:
46R6
Unit Price (€ / pc.)
3.6295 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

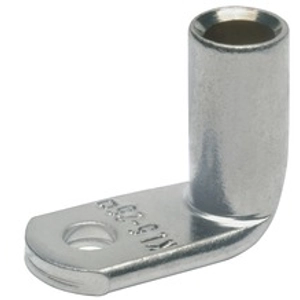

Angled tubular cable lug, 46R6, Klauke
Angled tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- Flat contact surface by special angle pressing technology
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
- Reliable assignment owed to item designation on the cable lug
Technical specifications
| Version | angled tube cable lug | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 50 mm² | |
| Hole diameter | 6.4 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
