42R6 | Klauke

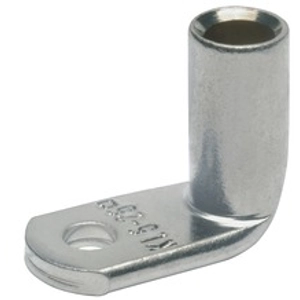

Uninsulated angled tube cable lug, 10 mm², 6.4 mm, M6

Order No.: 07F1065
EAN: 4012078466783
MPN:
42R6
Klauke
default L
Image may differ
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
0.9877 €

Angled tubular cable lug, 42R6, Klauke

Angled tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.

Features

  • Flat contact surface by special angle pressing technology
  • Annealed material optimises material and crimping properties
  • Simple and safe connection due to flat contact surfaces and internal chamfer
  • Tin-plated to protect against corrosion
  • Reliable assignment owed to item designation on the cable lug
Technical specifications
Version angled tube cable lug
Thread size M6
Isolated No
Cable cross-section 10 mm²
Hole diameter 6.4 mm
Material copper, tin-plated
Nominal size according to DIN DIN 60228
shrinkable tubing No
Logistics
Country of origin DE
Customs tariff number 85359000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 78 variations
