105R12 | Klauke
Uninsulated tube cable lug, 35 mm², 13 mm, M12, metal
Order No.: 07F2105
EAN: 4012078424417
MPN:
105R12
Unit Price (€ / pc.)
3.7842 € *
Available: 20 pcs.
Leadtime: On Request **
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
25 pcs.
3.2249 €
100 pcs.
2.9750 €
250 pcs.
2.8203 €
1000 pcs.
2.5823 €
*incl. VAT plus shipping costs
**Subject to prior sale

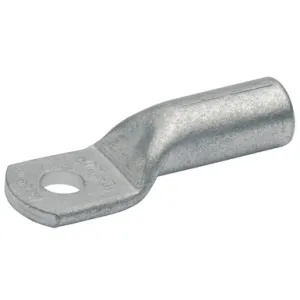

Cable lug, 105R12, Klauke
Compression cable lug made from copper, suitable for round conductors, non-tension copper cables and pre-rounded multi-stranded conductors.
Features
- Easy to process due to crimp markings
- Reliable tool selection by matching code indication on the butt connector
- Annealed material optimises material and crimping properties
- Tin-plated to protect against corrosion
Technical specifications
Version | tube cable lug | |
Colour | metal | |
Thread size | M12 | |
Isolated | No | |
Cable cross-section | 35 mm² | |
Hole diameter | 13 mm | |
Material | copper, tin-plated |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85369010 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
