K0567.01001057 | Kipp
Rubber/metal bumpers with 2 outer threads, tapered, D 10, D1 8.0, H 10 mm, G M 4, L 13 mm, K0567.01001057
Active
Total price
(
2.6299 €
* / pcs.)
2.63 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Kipp at Bürklin Elektronik

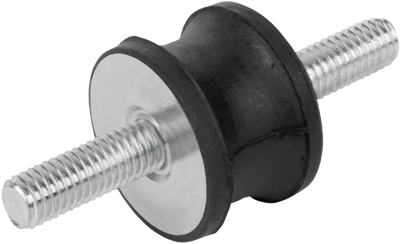

Rubber/metal bumpers, type K0567.
With 2 outer threads, tapered; Hardness: medium, 57° Shore A.

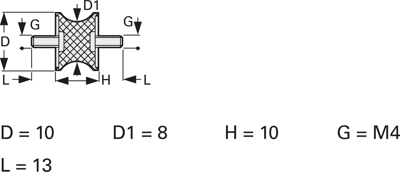

Technical attributes (type, dimensions D, D1, H, G, L): K0567.01001057, D 10, D1 8.0, H 10 mm, G M4, L 13 mm
Technical specifications
| Version | Rubber/metal bumpers | |
| Outer diameter | 10 mm | |
| Type of mounting | M4 | |
| Colour | black | |
| Height | 10 mm | |
| Material | Elastomer natural rubber, galvanized steel | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -30 °C | |
| Shaft length | 10 mm |
Logistics
| Country of origin | DE |
| Customs tariff number | 40169991 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
20H1814
Manufacturer:
Kipp
Manufacturer SKU
K0567.01501557
1 pcs.
1.4637 €
10 pcs.
1.3209 €
50 pcs.
1.1781 €
100 pcs.
1.0591 €
1.46 € *
Available: 31 pcs.
Elastomer natural rubber, galvanized steel
15 mm
screw mounting
Rubber/metal bumpers
15 mm
15 mm
black
-30 °C
80 °C
Order No.:
20H1812
Manufacturer:
Kipp
Manufacturer SKU
K0567.01001057
1 pcs.
2.6299 €
Elastomer natural rubber, galvanized steel
10 mm
M4
Rubber/metal bumpers
10 mm
10 mm
black
-30 °C
80 °C
