SA52-11EWA | Kingbright

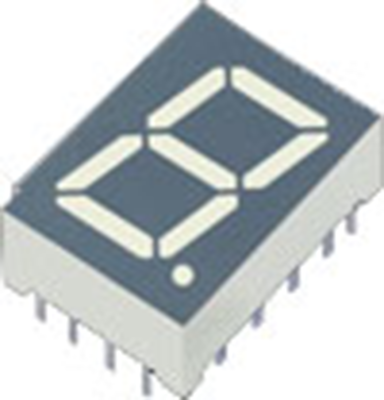

7-Segment Display SA52-11EWA
Active
Total price
(
1.7493 €
* / pcs.)
5.25 €
Available: 66 pcs.
Quantity
Price per unit*
3 pcs.
1.7493 €
15 pcs.
1.5351 €
75 pcs.
1.3566 €
400 pcs.
1.2257 €
800 pcs.
1.1186 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Kingbright at Bürklin Elektronik
7-segment displays, type Kingbright SA52../SC52.
Font height: 13.2 mm (0.52 inch). Package dimensions: 17.5 x 12.4 x 7.0 mm.
Technical attributes (type, emission color, wavelength, luminous intensity (min./typical) at 10 mA, common connection): SA52–11EWA, red, 625 nm, 1200/6400 µcd, anode
Technical specifications
| Connection | anode | |
| Number of positions | 1 | |
| Rated current | 0.03 A | |
| Width | 12.4 mm | |
| Colour | red | |
| Height | 7 mm | |
| Length | 17.5 mm | |
| Light intensity min. | 0.003 cd | |
| Light intensity typ. | 0.0064 cd | |
| Assembly | THT | |
| Wavelength | 0.625 µm | |
| Character height | 13.2 mm |
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bar with 40 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
71S1488
Manufacturer:
Kingbright
Manufacturer SKU
SA52-11EWA
3 pcs.
1.7493 €
15 pcs.
1.5351 €
75 pcs.
1.3566 €
400 pcs.
1.2257 €
800 pcs.
1.1186 €
5.25 € *
Available: 66 pcs.
13.2 mm
0.03 A
12.4 mm
17.5 mm
0.0064 cd
0.625 µm
7 mm
THT
anode
red
0.003 cd
Order No.:
71S1496
Manufacturer:
Kingbright
Manufacturer SKU
SA56-11EWA
400 pcs.
1.0353 €
14.22 mm
0.03 A
12.7 mm
19.05 mm
0.008 cd
0.625 µm
8 mm
THT
anode
red
0.0036 cd
Order No.:
71S1466
Manufacturer:
Kingbright
Manufacturer SKU
SA39-11GWA
390 pcs.
1.4161 €
9.9 mm
0.025 A
10 mm
13 mm
0.0064 cd
0.568 µm
7 mm
THT
anode
green
0.0022 cd
Order No.:
71S1490
Manufacturer:
Kingbright
Manufacturer SKU
SA52-11GWA
400 pcs.
1.3090 €
13.2 mm
0.025 A
12.4 mm
17.5 mm
0.0105 cd
0.568 µm
7 mm
THT
anode
green
0.0056 cd
Order No.:
71S1464
Manufacturer:
Kingbright
Manufacturer SKU
SA39-11EWA
5 pcs.
0.9282 €
25 pcs.
0.8449 €
150 pcs.
0.7854 €
500 pcs.
0.7259 €
1000 pcs.
0.6783 €
4.64 € *
Available: 57 pcs.
9.9 mm
0.03 A
10 mm
13 mm
0.0041 cd
0.625 µm
7 mm
THT
anode
red
0.0014 cd
Order No.:
71S1432
Manufacturer:
Kingbright
Manufacturer SKU
SA08-11EWA
180 pcs.
2.0825 €
20.32 mm
0.03 A
20 mm
27.7 mm
0.008 cd
0.625 µm
8.4 mm
THT
anode
red
0.0036 cd
Order No.:
71S1498
Manufacturer:
Kingbright
Manufacturer SKU
SA56-11GWA
400 pcs.
1.3090 €
14.22 mm
0.025 A
12.7 mm
19.05 mm
0.011 cd
0.568 µm
8 mm
THT
anode
green
0.0036 cd
Order No.:
71S1456
Manufacturer:
Kingbright
Manufacturer SKU
SA36-11EWA
360 pcs.
1.428 €
9.14 mm
0.03 A
7.5 mm
14 mm
0.0021 cd
0.625 µm
8.5 mm
THT
anode
red
0.0009 cd
Order No.:
71S1434
Manufacturer:
Kingbright
Manufacturer SKU
SA08-11GWA
180 pcs.
2.0825 €
20.32 mm
0.025 A
20 mm
27.7 mm
0.013 cd
0.568 µm
8.4 mm
THT
anode
green
0.0056 cd
