SA39-11EWA | Kingbright
7-Segment Display SA39-11EWA
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 3 Weeks

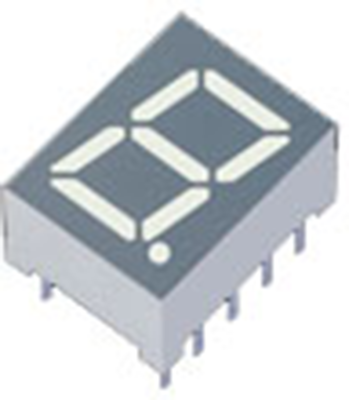

7-Segment display, SA39-11EWA, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Low current operation
- Excellent character appearance
- High light output
- Easy mounting on P.C. boards or sockets
- Mechanically rugged
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of positions | 1 | |
| Character height | 9.9 mm | |
| Colour | red | |
| Light intensity min. | 0.0014 cd | |
| Light intensity typ. | 0.0041 cd | |
| Wavelength | 625 nm | |
| Rated current | 30 mA | |
| Connection | anode | |
| Assembly | THT | |
| Length | 13 mm | |
| Width | 10 mm | |
| Height | 7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 39 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
