L-7104YD | Kingbright

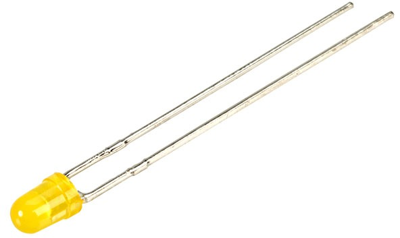

LED, THT, Ø 2.9 mm, yellow, 590 nm, 5 to 15 mcd, 40°, L-7104YD
Unit Price (€ / pc.)
0.1023 € *
Available: 969 pcs.
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1023 €
10 pcs.
0.1000 €
100 pcs.
0.0952 €
500 pcs.
0.0896 €
1000 pcs.
0.0743 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid state lamp, L-7104YD, Kingbright
The yellow source color device is made with gallium arsenide phosphide on gallium phosphide yellow light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Forward Current | 10 mA | |
| Number of LEDs | 1 | |
| max. operating temperature | 85 °C | |
| Wavelength | 590 nm | |
| Assembly | THT | |
| On-State Voltage | 2.5 V | |
| min. operating temperature | -40 °C | |
| Colour of the LED | yellow | |
| diameter | 2.9 mm | |
| Radiation angle | 40 ° | |
| Light intensity min. | 0.005 cd | |
| Light intensity typ. | 0.015 cd | |
| Length | 4.6 mm | |
| Lens | clear |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
