L-7104LYD | Kingbright

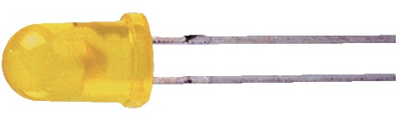

LED, THT, Ø 2.9 mm, yellow, 590 nm, 7 to 15 mcd, 40°, L-7104LYD
Images may differ
Total price
( 0.2047 € * / pcs.)
2.05 €
Available: 478 pcs.
Leadtime
Quantity
Price per unit*
10 pcs.
0.2047 €
50 pcs.
0.1464 €
250 pcs.
0.1214 €
1000 pcs.
0.1047 €
2500 pcs.
0.0916 €
*incl. VAT plus shipping costs
Description
Low-current LEDs, 3.0 mm, type Kingbright L-7104.
Viewing angle: 40°.
Technical attributes (type, emission color, wavelength, lens, luminous intensity at 2.0 mA (min./typical)): L-7104LYD, yellow, 588 nm, diffuse yellow, 0.7/1.5 mcd
Technical specifications
| Radiation angle | 40 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 2.5 V | |
| Forward Current | 30 mA | |
| diameter | 2.9 mm | |
| Colour of the LED | yellow | |
| Length | 4.6 mm | |
| Light intensity min. | 0.007 cd | |
| Light intensity typ. | 0.015 cd | |
| Lens | yellow | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Wavelength | 590 nm |
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
