L-7104SYD | Kingbright

LED, THT, Ø 2.9 mm, yellow, 590 nm, 110 to 250 mcd, 40°, L-7104SYD

Order No.: 72S7041
EAN: 4099879016980
MPN:
L-7104SYD
Series: L-7104
L-7104SYD Kingbright LEDs
Image may differ
Unit Price (€ / pc.)
0.0976 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
0.0976 €

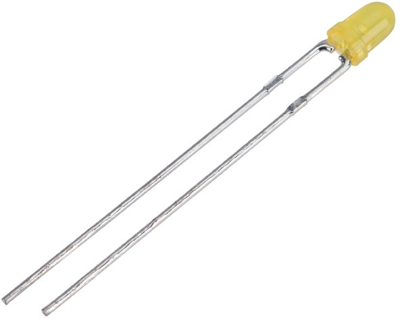

LED, L-7104SYD, Kingbright

The Super Bright Yellow device is made with InGaAlP (on GaAs substrate) light emitting diode chip.

Features

  • Low power consumption.
  • Popular T-1 diameter package.
  • General purpose leads.
  • Reliable and rugged.
Technical specifications
Number of LEDs 1
Wavelength 590 nm
max. operating temperature 85 °C
Forward Current 20 mA
Light intensity min. 0.11 cd
diameter 2.9 mm
min. operating temperature -40 °C
Colour of the LED yellow
Radiation angle 40 °
Assembly THT
Lens yellow
Light intensity typ. 0.25 cd
Length 4.6 mm
On-State Voltage 2.8 V
Logistics
MSL MSL 1
Country of origin CN
Original Packaging Bag with 500 pieces
Customs tariff number 85414100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
