L-7104SURDK | Kingbright
LED, THT, Ø 2.9 mm, red, 645 nm, 400 to 900 mcd, 40°, L-7104SURDK
Unit Price (€ / pc.)
0.2582 € *
Available: 58 pcs.
Total Price:
5.16 € *
Price list
Quantity
Price per unit*
20 pcs.
0.2582 €
100 pcs.
0.1904 €
500 pcs.
0.1499 €
2000 pcs.
0.1261 €
4000 pcs.
0.1131 €
*incl. VAT plus shipping costs
Subject to prior sale

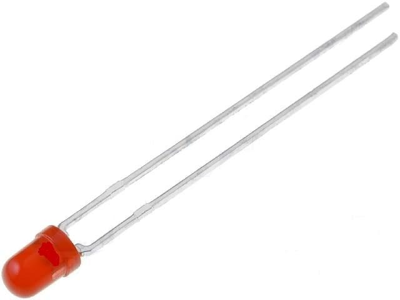

Solid state lamp, L-7104SURDK, Kingbright
The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.9 mm | |
| Radiation angle | 40 ° | |
| Lens | red | |
| Wavelength | 645 nm | |
| Forward Current | 20 mA | |
| max. operating temperature | 85 °C | |
| Length | 4.6 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.9 cd | |
| Assembly | THT | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.4 cd | |
| On-State Voltage | 2.5 V | |
| Colour of the LED | red |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bag with 500 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
