L-7104SEC-J3 | Kingbright
LED, THT, Ø 2.94 mm, red, 630 nm, 2.3 to 4.1 cd, 34°, L-7104SEC-J3
Unit Price (€ / pc.)
0.7021 € *
Available: 549 pcs.
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7021 €
50 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale

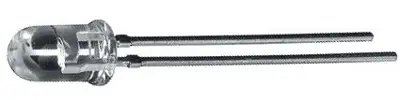

Solid state lamp, L-7104SEC-J3, Kingbright
The hyper red device is based on light emitting diode. made from AlGaInP.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | red | |
| Wavelength | 630 nm | |
| On-State Voltage | 2.1 V | |
| Lens | clear | |
| diameter | 2.94 mm | |
| Light intensity min. | 2.3 cd | |
| Forward Current | 50 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 1 | |
| Radiation angle | 34 ° | |
| Light intensity typ. | 4.1 cd | |
| Length | 5.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
