L-7104QBC-G | Kingbright
LED, THT, Ø 2.9 mm, blue, 461 nm, 11 to 23 cd, 20°, L-7104QBC-G
Unit Price (€ / pc.)
1.2138 € *
Available: 1,079 pcs.
Total Price:
12.14 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2138 €
50 pcs.
1.0710 €
500 pcs.
0.8568 €
1000 pcs.
0.7973 €
2000 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale

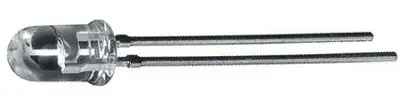

Solid state lamp, L-7104QBC-G, Kingbright
The blue source color device is made with InGaN light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | blue | |
| Wavelength | 461 nm | |
| On-State Voltage | 3.3 V | |
| Lens | clear | |
| diameter | 2.9 mm | |
| Light intensity min. | 11 cd | |
| Forward Current | 30 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 1 | |
| Radiation angle | 20 ° | |
| Light intensity typ. | 23 cd | |
| Length | 4.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
