L-7104MGC | Kingbright

LED, THT, Ø 2.9 mm, green, 574 nm, 0.18 to 0.7 cd, 34°, L-7104MGC

Order No.: 72S5539
EAN: 4099879015839
MPN:
L-7104MGC
Series: L-7104
L-7104MGC Kingbright LEDs

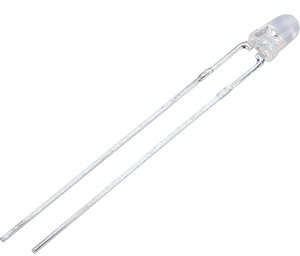

Image may differ
Unit Price (€ / pc.)
0.2202 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
220.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.2202 €

Solid state lamp, L-7104MGC, Kingbright

The mega green source color device is made with DH InGaAlP on GaAs substrate light emitting diode.

Features

  • Low power consumption
  • General purpose leads
  • Reliable and rugged
  • Long life - solid state reliability
  • RoHS compliant
Technical specifications
Filter Property Value
On-State Voltage 3.2 V
Assembly THT
diameter 2.9 mm
Width 2.54 mm
Forward Current 30 mA
Length 31.6 mm
Wavelength 574 nm
Number of LEDs 1
min. operating temperature -40 °C
Lens clear
Colour of the LED green
max. operating temperature 85 °C
Radiation angle 34 °
Light intensity min. 0.18 cd
Light intensity typ. 0.7 cd
Logistics
Property Value
Country of origin CN
Customs tariff number 85414100
Original Packaging Bag with 500 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
