KPT-3216LVVBC-D | Kingbright
LED, SMD, 1206, blue, 470 nm, 20 mcd to 0.024 cd, 150°, KPT-3216LVVBC-D
Unit Price (€ / pc.)
0.2916 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

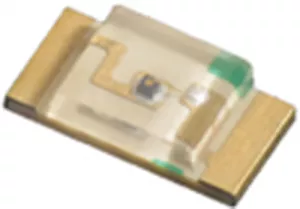

SMD Chip LED lamp, KPT-3216LVVBC-D, Kingbright
The blue source color device is made with InGaN light emitting diode. It is recommended to use a wrist band or anti- electrostatic glove when handling the LEDs.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Radiation angle | 150 ° | |
| Number of LEDs | 1 | |
| Width | 1.6 mm | |
| On-State Voltage | 2.65 V | |
| Forward Current | 2 mA | |
| Colour of the LED | blue | |
| Enclosure | 1206 | |
| Length | 3.2 mm | |
| Light intensity min. | 0.02 cd | |
| Light intensity typ. | 0.024 cd | |
| Lens | clear | |
| Assembly | SMD | |
| Wavelength | 470 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
