Kingbright

KPT-1608SURCK | Kingbright

LED, SMD, 0603, red, 630 nm, 120 to 230 mcd, 120°, KPT-1608SURCK

default S
default L
Order No.:  72S7081
Manufacturer:  Kingbright
Manufacturer SKU
KPT-1608SURCK
SMD LED rd 630nm 230mcd 120°
EAN: 4099879017307
about the green icons

Active

Total price
( 0.3332 € * / pcs.)
8.33 €
Available: 60 pcs.
Quantity
Price per unit*
25 pcs.
0.3332 €
50 pcs.
0.2463 €
100 pcs.
0.1952 €
500 pcs.
0.1618 €
1000 pcs.
0.1440 €
*incl. VAT plus shipping costs
Show 2 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by Kingbright at Bürklin Elektronik

SMD LED, KPT-1608SURCK, Kingbright

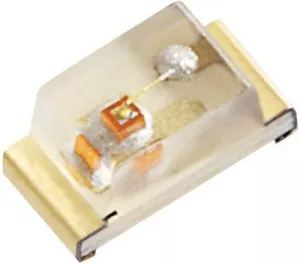

SMD Chip LED lamp, hyper red, 1.6x0.8 mm. The Hyper Red source color device is made with AlGaInP on GaAs substrate Light Emitting Diode.

Features

  • Low power consumption
  • Wide viewing angle
  • Ideal for backlight and indicator
  • Level 3 moisture sensitivity level
Technical specifications
Radiation angle 120 °
Number of LEDs 1
Width 0.8 mm
On-State Voltage 2.5 V
Forward Current 30 mA
Colour of the LED red
Enclosure 0603
Length 1.6 mm
Light intensity min. 0.12 cd
Light intensity typ. 0.23 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Wavelength 0.63 µm
Show similar products (0)
Logistics
Country of origin CH
Customs tariff number 85414100
MSL MSL 3
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Light intensity typ.
Wavelength
Unit
Light intensity min.
min. operating temperature
Enclosure
Radiation angle
Forward Current
Unit
Width
Unit
Length
Unit
Lens
On-State Voltage
Unit
Assembly
Colour of the LED
max. operating temperature
1 item in 2 variations
Item description
Price list
Total
Light intensity typ.
Wavelength
Light intensity min.
min. operating temperature
Enclosure
Radiation angle
Forward Current
Width
Length
Lens
On-State Voltage
Assembly
Colour of the LED
max. operating temperature
LED, SMD, 0603, red, 630 nm, 120 to 230 mcd, 120°, KPT-1608SURCK
LED, SMD, 0603, red, 630 nm, 120 to 230 mcd, 120°, KPT-1608SURCK
Order No.:
 72S7081
Manufacturer:
 Kingbright
Manufacturer SKU
 KPT-1608SURCK
25 pcs.
0.3332 €
50 pcs.
0.2463 €
100 pcs.
0.1952 €
500 pcs.
0.1618 €
1000 pcs.
0.1440 €
8.33 € *
Available: 60 pcs.
0.23 cd
0.63 µm
0.12 cd
-40 °C
0603
120 °
30 mA
0.8 mm
1.6 mm
clear
2.5 V
SMD
red
85 °C
LED, SMD, 0603, green, 570 nm, 20 to 25 mcd, 120°, KPT-1608CGCK
LED, SMD, 0603, green, 570 nm, 20 to 25 mcd, 120°, KPT-1608CGCK
Order No.:
 72S7085
Manufacturer:
 Kingbright
Manufacturer SKU
 KPT-1608CGCK
20 pcs.
0.3213 €
100 pcs.
0.2368 €
500 pcs.
0.1880 €
2000 pcs.
0.1559 €
4000 pcs.
0.1392 €
6.43 € *
Available: 1,950 pcs.
0.025 cd
0.57 µm
0.02 cd
-40 °C
0603
120 °
20 mA
0.8 mm
1.6 mm
clear
2.5 V
SMD
green
85 °C
*incl. VAT plus shipping costs
