KPT-1608LVZGCK | Kingbright

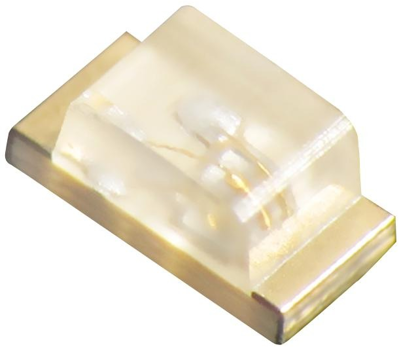

LED, SMD, 0603, green, 525 nm, 20 mcd to 0.05 cd, 130°, KPT-1608LVZGCK
Active
Total price
(
0.4879 €
* / pcs.)
4.88 €
Available: 65 pcs.
Quantity
Price per unit*
10 pcs.
0.4879 €
50 pcs.
0.3808 €
250 pcs.
0.3094 €
1000 pcs.
0.2749 €
2000 pcs.
0.2463 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Kingbright at Bürklin Elektronik
LED, KPT-1608LVZGCK, Kingbright
The Green source color devices are made with InGaN on Sapphire Light Emitting Diode.
FEATURES
- Low power consumption.
- Ideal for backlight and indicator.
- Moisture sensitivity level: 3
- Low current IF=2mA operating.
Technical specifications
| Radiation angle | 130 ° | |
| Number of LEDs | 1 | |
| Width | 0.75 mm | |
| On-State Voltage | 2.65 V | |
| Forward Current | 2 mA | |
| Colour of the LED | green | |
| Enclosure | 0603 | |
| Length | 1.6 mm | |
| Light intensity min. | 0.02 cd | |
| Light intensity typ. | 0.05 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 0.525 µm |
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
72S6957
Manufacturer:
Kingbright
Manufacturer SKU
KPT-1608LVZGCK
10 pcs.
0.4879 €
50 pcs.
0.3808 €
250 pcs.
0.3094 €
1000 pcs.
0.2749 €
2000 pcs.
0.2463 €
4.88 € *
Available: 65 pcs.
0.05 cd
0.525 µm
0.02 cd
-40 °C
0603
130 °
2 mA
0.75 mm
1.6 mm
clear
2.65 V
SMD
green
85 °C
Order No.:
72S6953
Manufacturer:
Kingbright
Manufacturer SKU
KPT-1608LVSECK-J3-PRV
10 pcs.
0.4879 €
50 pcs.
0.3808 €
250 pcs.
0.3094 €
1000 pcs.
0.2761 €
2000 pcs.
0.2475 €
4.88 € *
Available: 1,686 pcs.
0.1 cd
0.64 µm
0.05 cd
-40 °C
0603
120 °
2 mA
1.6 mm
0.75 mm
clear
1.8 V
SMD
red
85 °C
Order No.:
72S6955
Manufacturer:
Kingbright
Manufacturer SKU
KPT-1608LVSYCK-J3-PRV
10 pcs.
0.5712 €
50 pcs.
0.4403 €
250 pcs.
0.3570 €
1000 pcs.
0.3213 €
2000 pcs.
0.2868 €
5.71 € *
Available: 189 pcs.
0.025 cd
0.59 µm
0.02 cd
-40 °C
0603
120 °
2 mA
0.8 mm
1.6 mm
clear
1.85 V
SMD
red
85 °C
Order No.:
72S6954
Manufacturer:
Kingbright
Manufacturer SKU
KPT-1608LVSECK-J4-PRV
2000 pcs.
0.2535 €
0.15 cd
0.605 µm
0.03 cd
-40 °C
1206
120 °
2 mA
0.8 mm
1.6 mm
clear
1.8 V
SMD
orange
85 °C
Order No.:
72S6956
Manufacturer:
Kingbright
Manufacturer SKU
KPT-1608LVVBC-D
2000 pcs.
0.2428 €
0.024 cd
0.47 µm
0.015 cd
-40 °C
0603
120 °
2 mA
0.8 mm
1.6 mm
clear
2.65 V
SMD
blue
85 °C
