Kingbright

KPHD-1608LVSURCK | Kingbright

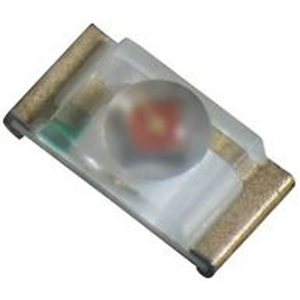

LED, SMD, Ø 0.7 mm, red, 630 nm, 0.045 cd, 100°, KPHD-1608LVSURCK

default S
default L
Order No.:  72S6943
Manufacturer:  Kingbright
Manufacturer SKU KPHD-1608LVSURCK
Manufacturer series:  KPHD-1608
EAN: 4099879016294
about the green icons

Active

Total price
( 0.2796 € * / pcs.)
5.59 €
Available: 4,640 pcs.
Quantity
Price per unit*
20 pcs.
0.2796 €
100 pcs.
0.2190 €
500 pcs.
0.1797 €
2000 pcs.
0.1583 €
4000 pcs.
0.1428 €
*incl. VAT plus shipping costs
Show 5 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by Kingbright at Bürklin Elektronik

LED, KPHD-1608LVSURCK, Kingbright

The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode

FEATURES

  • Low power consumption.
  • Wide viewing angle.
  • Moisture sensitivity level: 3
  • Ideal for backlight and indicator.
Technical specifications
Radiation angle 100 °
Number of LEDs 1
Width 0.8 mm
On-State Voltage 1.75 V
Forward Current 2 mA
diameter 0.7 mm
Colour of the LED red
Length 1.6 mm
Light intensity typ. 0.045 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Wavelength 0.63 µm
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85414100
MSL MSL 3
Original Packaging Reel with 2,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Light intensity typ.
Wavelength
Unit
min. operating temperature
Light intensity min.
Enclosure
diameter
Unit
Radiation angle
Forward Current
Unit
Width
Unit
Length
Unit
Lens
On-State Voltage
Unit
Assembly
Colour of the LED
max. operating temperature
1 item in 5 variations
Item description
Price list
Total
Light intensity typ.
Wavelength
min. operating temperature
Light intensity min.
Enclosure
diameter
Radiation angle
Forward Current
Width
Length
Lens
On-State Voltage
Assembly
Colour of the LED
max. operating temperature
LED, SMD, 0603, Ø 0.7 mm, blue, 470 nm, 10 mcd to 0.025 cd, 90°, KPHD-1608LVQBC-D
LED, SMD, 0603, Ø 0.7 mm, blue, 470 nm, 10 mcd to 0.025 cd, 90°, KPHD-1608LVQBC-D
Order No.:
 72S6942
Manufacturer:
 Kingbright
Manufacturer SKU
 KPHD-1608LVQBC-D
10 pcs.
0.4046 €
50 pcs.
0.3213 €
250 pcs.
0.2618 €
1000 pcs.
0.2332 €
2000 pcs.
0.2083 €
4.05 € *
Available: 2,255 pcs.
0.025 cd
0.47 µm
-40 °C
0.01 cd
0603
0.7 mm
90 °
30 mA
0.8 mm
1.6 mm
clear
2.65 V
SMD
blue
85 °C
LED, SMD, Ø 0.7 mm, red, 630 nm, 0.045 cd, 100°, KPHD-1608LVSURCK
LED, SMD, Ø 0.7 mm, red, 630 nm, 0.045 cd, 100°, KPHD-1608LVSURCK
Order No.:
 72S6943
Manufacturer:
 Kingbright
Manufacturer SKU
 KPHD-1608LVSURCK
20 pcs.
0.2796 €
100 pcs.
0.2190 €
500 pcs.
0.1797 €
2000 pcs.
0.1583 €
4000 pcs.
0.1428 €
5.59 € *
Available: 4,640 pcs.
0.045 cd
0.63 µm
-40 °C
0.7 mm
100 °
2 mA
0.8 mm
1.6 mm
clear
1.75 V
SMD
red
85 °C
LED, SMD, 0603, Ø 0.7 mm, green, 525 nm, 50 mcd to 0.18 cd, 100°, KPHD-1608LVZGCK
LED, SMD, 0603, Ø 0.7 mm, green, 525 nm, 50 mcd to 0.18 cd, 100°, KPHD-1608LVZGCK
Order No.:
 72S6946
Manufacturer:
 Kingbright
Manufacturer SKU
 KPHD-1608LVZGCK
25 pcs.
0.3213 €
125 pcs.
0.2820 €
500 pcs.
0.2535 €
2000 pcs.
0.2309 €
5000 pcs.
0.2118 €
8.03 € *
Available: 2,885 pcs.
0.18 cd
0.525 µm
-40 °C
0.05 cd
0603
0.7 mm
100 °
2 mA
0.8 mm
1.6 mm
clear
2.65 V
SMD
green
85 °C
LED, SMD, 0603, yellow, 590 nm, 4 mcd to 0.02 cd, 100°, KPHD-1608LVSYCK
LED, SMD, 0603, yellow, 590 nm, 4 mcd to 0.02 cd, 100°, KPHD-1608LVSYCK
Order No.:
 72S6944
Manufacturer:
 Kingbright
Manufacturer SKU
 KPHD-1608LVSYCK
20 pcs.
0.2832 €
100 pcs.
0.2213 €
500 pcs.
0.1809 €
2000 pcs.
0.1607 €
4000 pcs.
0.1440 €
5.66 € *
Available: 3,815 pcs.
0.02 cd
0.59 µm
-40 °C
0.004 cd
0603
100 °
2 mA
0.8 mm
1.6 mm
clear
1.85 V
SMD
yellow
85 °C
LED, SMD, green, 570 nm, 2 mcd to 0.008 cd, 100°, KPHD-1608LVCGCK
LED, SMD, green, 570 nm, 2 mcd to 0.008 cd, 100°, KPHD-1608LVCGCK
Order No.:
 72S6941
Manufacturer:
 Kingbright
Manufacturer SKU
 KPHD-1608LVCGCK
20 pcs.
0.3570 €
100 pcs.
0.2725 €
500 pcs.
0.2225 €
2000 pcs.
0.1975 €
4000 pcs.
0.1785 €
7.14 € *
Available: 5,280 pcs.
0.008 cd
0.57 µm
-40 °C
0.002 cd
100 °
2 mA
0.8 mm
1.6 mm
clear
1.9 V
SMD
green
85 °C
