KPB-3025ESGC | Kingbright
LED, SMD, 1210, red/green, 4 mcd to 0.015 cd, 120°, KPB-3025ESGC
Unit Price (€ / pc.)
0.4165 € *
Available: 920 pcs.
Leadtime: 9 Weeks **
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4165 €
50 pcs.
0.3332 €
250 pcs.
0.2689 €
1000 pcs.
0.2392 €
2000 pcs.
0.2154 €
*incl. VAT plus shipping costs
**Subject to prior sale

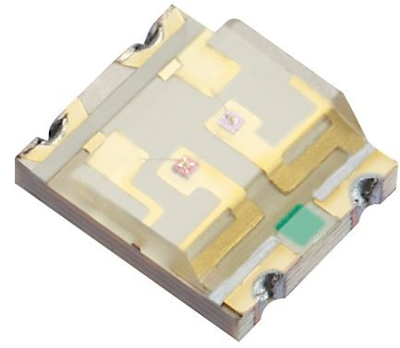

Surface mount LED lamp, KPB-3025ESGC, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode. The super bright green source color device is made with gallium phosphide green light emitting diode.
Features
- Bi -color,Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 2 | |
| Width | 3 mm | |
| On-State Voltage | 2.5 V | |
| Forward Current | 25 mA | |
| Colour of the LED | red/green | |
| Enclosure | 1210 | |
| Length | 2.5 mm | |
| Light intensity min. | 0.004 cd | |
| Light intensity typ. | 0.015 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
