50.520 | Kendrion Kuhnke

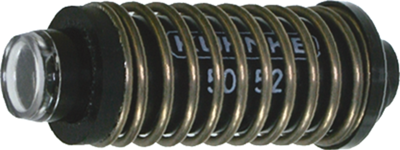

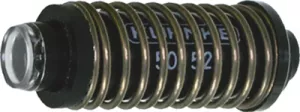

Signal status indicator, red, 50.520
Active
Product by Kendrion Kuhnke at Bürklin Elektronik
Signal status indicators for panel mounting, type Kuhnke 50.52.
For visual check of the pressure, the indicator color transforms from black to green or red when air pressure is applied; Pressure range: 1.2 to 8.0 bar. Pressurized media fitting: M 5. Ambient temperatures: –10 to +50 °C.
Type: 50.520, red signal status indicator
| Pressure | 8 bar | |
| Suitable for | panel mounting | |
| Thread size | M5 | |

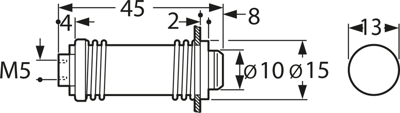

| Length | 45 mm | |
| Accessory Type | signal indicator |
| Country of origin | IT |
| Customs tariff number | 84818099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
