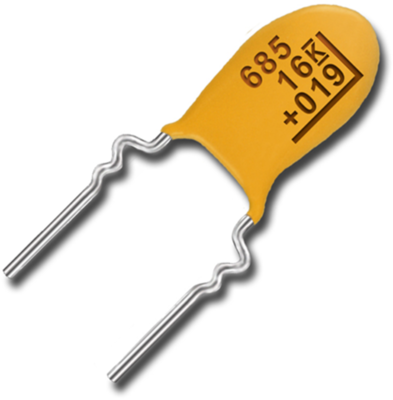

The KEMET ‘UltraDip II’ Capacitors offer the designer of quality instruments and entertainment systems the widely recognized advantages inherent in solid tantalum capacitors at competitive prices.The ‘UltraDip II’ Series, miniature dipped solid tantalum capacitors, provide the designer with the advantage of compactness plus low leakage and low DF performance characteristics for filtering, bypassing, coupling, blocking and RC timing circuits.The ‘UltraDip II’ Series provides self-insulating cases which are resistant to shock and vibration.
Technical Data
Design | axial | |
Size | J | |

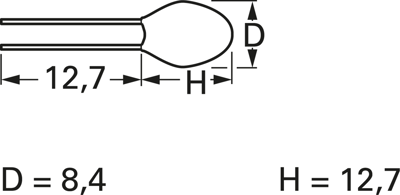

diameter | 8.4 mm | |
Capacity | 47 µF | |
Length | 12.7 mm | |
max. operating temperature | 85 °C | |
min. operating temperature | -55 °C | |
Rated voltage (DC) | 16 V | |
Grid | 5.08 mm | |
Tolerance | ±20 % |
Country of origin | MX |
Customs tariff number | 85322100 |
Original Packaging | Reel with 800 pieces |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
Order No.:
53D757
Manufacturer SKU:
C062K474K5X5CA7303
