T110C226M035AT | Kemet

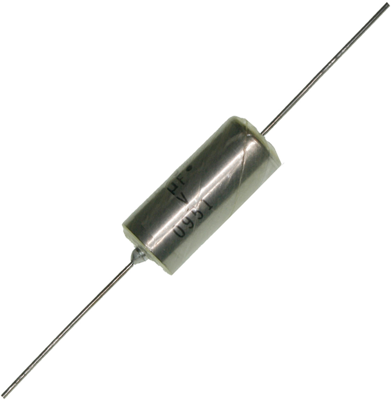

Talantum capacitor, axial, C, 22 µF, 35 V, ±20 %, T110C226M035AT
Unit Price (€ / pc.)
14.5180 € *
Standard delivery time from the manufacturer is: 23 Weeks
Axial, Tantalum capacitor, T110C226M035AT, Kemet
EMET standard hermetic sealed T110 Series are desirable for use in high humidity environments. They are ruggedly built, designed for miniaturized circuitry, and are especially suited for coupling, bypass, filtering and R-C timing circuits. They exhibit excellent stability, extremely low DC leakage current, dissipation factor, and ESR/impedance over a wide temperature and frequency range
Technical Data
- Capacity: 22 µF
- Nominal voltage: 35 V
- Size: C
- Tolerance: ±20 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 35 V | |
| diameter | 7.4 mm | |
| Size | C | |
| max. operating temperature | 85 °C | |
| Capacity | 22 µF | |
| Design | axial | |
| ESR (Equivalent Series Resistance) | 1.3 Ω | |
| Tolerance | ±20 % | |
| Length | 17.4 mm | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85322100 |
| Original Packaging | Bulk with 20 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
