T110C106M035AT | Kemet

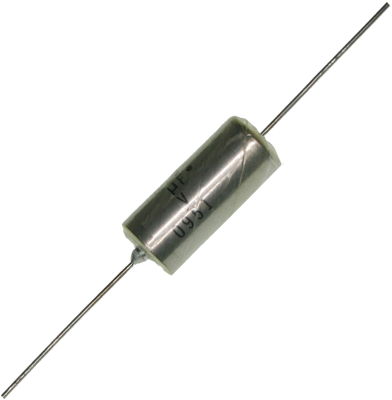

Talantum capacitor, axial, C, 10 µF, 35 V, ±20 %, T110C106M035AT
Active
Product by Kemet at Bürklin Elektronik
Axial, Tantalum capacitor, T110C106M035AT, Kemet
EMET standard hermetic sealed T110 Series are desirable for use in high humidity environments. They are ruggedly built, designed for miniaturized circuitry, and are especially suited for coupling, bypass, filtering and R-C timing circuits. They exhibit excellent stability, extremely low DC leakage current, dissipation factor, and ESR/impedance over a wide temperature and frequency range
Technical Data
- Capacity: 10 µF
- Nominal voltage: 35 V
- Size: C
- Tolerance: ±20 %
| Design | axial | |
| Size | C | |
| diameter | 7.4 mm | |
| ESR (Equivalent Series Resistance) | 2 Ω | |
| Capacity | 10 µF | |
| Length | 17.4 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 35 V | |
| Tolerance | ±20 % |
| Country of origin | MX |
| Customs tariff number | 85322100 |
| Original Packaging | Bulk with 20 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
