CA035M0033RED-0605 | Kemet

Electrolytic capacitor, 33 µF, 35 V (DC), ±20 %, SMD, Ø 6.3 mm, CA035M0033RED-0605

Order No.: 10D3070
EAN: 4099879865014
MPN:
CA035M0033RED-0605
EDK035M0033RED-0605
Series: CA

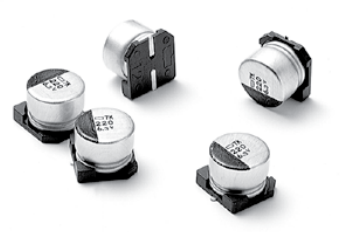

CA035M0033RED-0605 Kemet Electrolytic Capacitors Image 1
CA035M0033RED-0605 Kemet Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.0762 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
761.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
10000 pcs.
0.0762 €

SMD aluminum electrolytic capacitor, type Kemet CA-Series.

For surface mounting and high soldering heat load, suitable for use at temperatures of up to +85 °C

Technical specifications
Filter Property Value
Design SMD
max. operating temperature 85 °C
Version polar
Capacity 33 µF
diameter 6.3 mm
Ripple current 100 mA
min. operating temperature -40 °C
Tolerance ±20 %
Rated voltage (DC) 35 V
Length 5.4 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85322200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
