KA1238HA2BMT | KAKU
AC axial fan, 230 V, 120 x 120 x 38 mm, 142 m³/h, 45 dB, ball bearing, KAKU KA1238HA2BMT
Unit Price (€ / pc.)
15.4938 € *
Available: 0 pcs.
Leadtime: On Request **

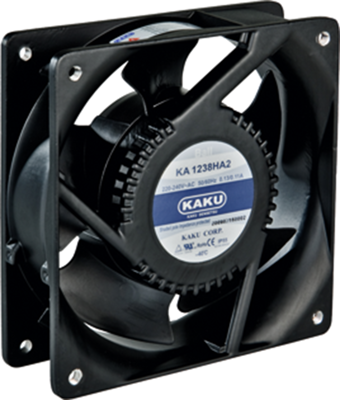

AC Axial fan, KA1238HA2BMT, KAKU
The KA1238HA2BMT AC fan is used for industrial purposes and has a remarkable conveying capacity. Due to the nearly linear air performance characteristic, the fan is well suited for various applications.
Features
- It is permanently electrically protected against blocking and thermal overloads
- Due to the low rotor weight and precision balancing, it has high shock and vibration resistance
- Extremely strong and durable aluminum housing
- Connection 2 blade terminals 2.8x0.5mm
Technical specifications
| Version | AC axial fan | |
| Rated voltage | 230 V | |
| Width | 120 mm | |
| Height | 120 mm | |
| Depth | 38 mm | |
| Volume flow | 142 m³/h | |
| Sound pressure level | 45 db | |
| speed | 2700 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 21 W |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
