571912202 | Kabeltronik

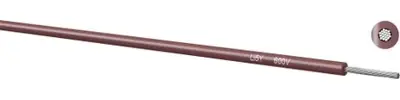

PTFE-switching strand, Li5Y_600V, 0.34 mm², AWG 22, 19 x 0.16 mm, brown, outer Ø 1.17 mm, 571912202
Unit Price (€ / mtr.)
2.1420 € *
Available: 65 mtr.
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
1 mtr.
2.1420 €
10 mtr.
1.7731 €
250 mtr.
1.4875 €
1000 mtr.
1.3447 €
2500 mtr.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale
PTFE Stranded wire, 571912202, KABELTRONIK
This PTFE stranded wire can be used in the fields of industry, electronics and communications, where rough influences e.g. temperature, steam, liquids, etc.
Features
- Solvent and ozone steadily
- Not-inflammable
- Non water absorption
- Weather-proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.34 mm² | |
| Outer diameter | 1.17 mm | |
| Temperature range (unmoved) | -65 °C to 200 °C | |
| Colour | brown | |
| Core insulation material | PTFE | |
| Test voltage | 2.5 kV | |
| Rated voltage | 600 V | |
| AWG cross-section | AWG 22 | |
| Cable structure | 19 x 0.16 mm | |
| Cable material | copper, silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
