570712802 | Kabeltronik

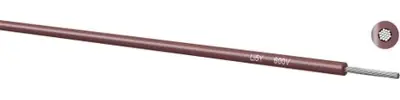

PTFE-switching strand, Li5Y_600V, 0.09 mm², AWG 28, 7 x 0.127 mm, brown, outer Ø 0.79 mm, 570712802
Unit Price (€ / mtr.)
1.2495 € *
Available in 7 Days: 2,750 mtr. - if ordered today
Total Price:
312.38 € *
Price list
Quantity
Price per unit*
250 mtr.
1.2495 €
1000 mtr.
1.1305 €
2500 mtr.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
PTFE Stranded wire, 570712802, KABELTRONIK
This PTFE stranded wire can be used in the fields of industry, electronics and communications, where rough influences e.g. temperature, steam, liquids, etc.
Features
- Solvent and ozone steadily
- Not-inflammable
- Non water absorption
- Weather-proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Test voltage | 2.5 kV | |
| Product type | switching strand | |
| Cable material | copper, silver-plated | |
| Temperature range (unmoved) | -65 °C to 200 °C | |
| Cable cross-section | 0.09 mm² | |
| Outer diameter | 0.79 mm | |
| Cable structure | 7 x 0.127 mm | |
| Rated voltage | 600 V | |
| AWG cross-section | AWG 28 | |
| Colour | brown | |
| Core insulation material | PTFE |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 250 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
