570703201 | Kabeltronik

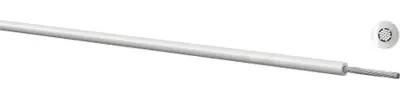

PTFE-switching strand, Li5Y_250V, 0.032 mm², AWG 32, 7 x 0.08 mm, white, outer Ø 0.48 mm, 570703201
Unit Price (€ / mtr.)
2.2848 € *
Available: 120 mtr.
Available in 7 Days: 1,500 mtr. - if ordered today
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 mtr.
2.2848 €
10 mtr.
1.9040 €
250 mtr.
1.5946 €
1000 mtr.
1.4399 €
2500 mtr.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale
PTFE Stranded wire, 570703201, KABELTRONIK
This PTFE stranded wire can be used in the fields of industry, electronics and communications, where rough influences e.g. temperature, steam, liquids, etc.
Features
- Solvent and ozone steadily
- Not-inflammable
- Non water absorption
- Weather-proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Test voltage | 1.5 kV | |
| Cable cross-section | 0.032 mm² | |
| Outer diameter | 0.48 mm | |
| Cable structure | 7 x 0.08 mm | |
| AWG cross-section | AWG 32 | |
| Rated voltage | 250 V | |
| Temperature range (unmoved) | -65 °C to 200 °C | |
| Core insulation material | PTFE | |
| Cable material | copper, silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 250 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
