570703001 | Kabeltronik

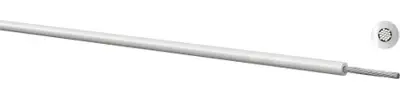

PTFE-switching strand, Li5Y_250V, 0.05 mm², AWG 30, 7 x 0.102 mm, white, outer Ø 0.56 mm, 570703001
Unit Price (€ / mtr.)
1.6898 € *
Available: 29 mtr.
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6898 €
10 mtr.
1.4042 €
250 mtr.
1.1781 €
1000 mtr.
1.0710 €
2500 mtr.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale
PTFE Stranded wire, 570703001, KABELTRONIK
This PTFE stranded wire can be used in the fields of industry, electronics and communications, where rough influences e.g. temperature, steam, liquids, etc.
Features
- Solvent and ozone steadily
- Not-inflammable
- Non water absorption
- Weather-proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable structure | 7 x 0.102 mm | |
| AWG cross-section | AWG 30 | |
| Temperature range (unmoved) | -65 °C to 200 °C | |
| Product type | switching strand | |
| Test voltage | 1.5 kV | |
| Cable material | copper, silver-plated | |
| Rated voltage | 250 V | |
| Core insulation material | PTFE | |
| Colour | white | |
| Cable cross-section | 0.05 mm² | |
| Outer diameter | 0.56 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 250 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
