170205006 | Kabeltronik

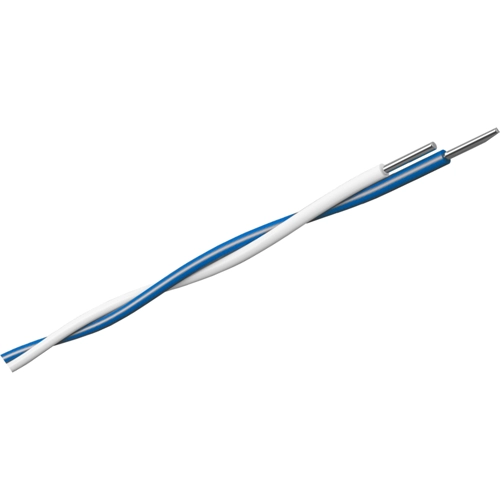

PVC-switching wire, Yv verseilt, 0.20 mm², 1 x 0.5 mm, white/blue, outer Ø 1.9 mm, 170205006
Unit Price (€ / mtr.)
0.3808 € *
Available in 7 Days: 5,643 mtr. - if ordered today
Hook-up wire, 170205006, Kabeltronik
Communication-technology, telecommunication installations as well as in all fields of general wiring technology.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Bending radius moved | 15 mm | |
| Colour | white/blue | |
| Test voltage | 1.2 kV | |
| Cable cross-section | 0.20 mm² | |
| Outer diameter | 1.9 mm | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable structure | 1 x 0.5 mm | |
| Standard number | VDE 0207 | |
| Rated voltage | 500 V | |
| Bending radius unmoved | 10 mm | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Core insulation material | PVC | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
