060105028 | Kabeltronik

PVC-switching strand, LiYv, 0.5 mm², 16 x 0.2 mm, green/yellow, outer Ø 1.8 mm, 060105028

Order No.: 92F1034
EAN: 4099891960384
MPN:
060105028
Series: LiYv
060105028 Kabeltronik Insulated stranded wires

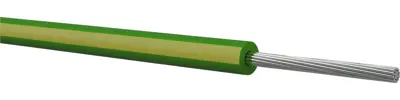

Image may differ
Unit Price (€ / mtr.)
0.5474 € *
Available: 100 mtr.
Available in 7 Days: 7,070 mtr. - if ordered today
Total Price:
54.74 € *
Price list
Quantity
Price per unit*
100 mtr.
0.5474 €
500 mtr.
0.4760 €
1000 mtr.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

Stranded wire, 060105028, Kabeltronik

Flexible, PVC-insulated stranded wire for wiring device assemblies and racks, as well as for telecommunications equipment and low-current systems. Not approved for heavy current applications outside of equipment.

Technical specifications
Outer diameter 1.8 mm
Core insulation material PVC
Temperature range (active) -5 °C to 70 °C
Cable material copper, tin-plated
Cable cross-section 0.5 mm²
Temperature range (unmoved) -30 °C to 70 °C
Rated voltage 900 V
Cable structure 16 x 0.2 mm
Test voltage 2.5 kV
Colour green/yellow
Halogen free No
Logistics
Customs tariff number 85444995
Country of origin DE
Original Packaging Reel with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
