060105005 | Kabeltronik

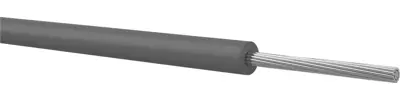

PVC-switching strand, LiYv, 0.5 mm², 16 x 0.2 mm, gray, outer Ø 1.8 mm, 060105005

Order No.: 92F1035
EAN: 4099891960391
MPN:
060105005
Series: LiYv
060105005 Kabeltronik Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.5117 € *
Available: 100 mtr.
Available in 7 Days: 12,240 mtr. - if ordered today
Total Price:
51.17 € *
Price list
Quantity
Price per unit*
100 mtr.
0.5117 €
500 mtr.
0.4522 €
1000 mtr.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

Stranded wire, 060105005, Kabeltronik

Flexible, PVC-insulated stranded wire for wiring device assemblies and racks, as well as for telecommunications equipment and low-current systems. Not approved for heavy current applications outside of equipment.

Technical specifications
Outer diameter 1.8 mm
Core insulation material PVC
Temperature range (active) -5 °C to 70 °C
Cable material copper, tin-plated
Cable cross-section 0.5 mm²
Temperature range (unmoved) -30 °C to 70 °C
Rated voltage 900 V
Cable structure 16 x 0.2 mm
Test voltage 2.5 kV
Colour gray
Halogen free No
Logistics
Customs tariff number 85444995
Country of origin DE
Original Packaging Reel with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
