060102502 | Kabeltronik

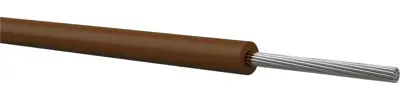

PVC-switching strand, LiYv, 0.25 mm², 14 x 0.15 mm, brown, outer Ø 1.3 mm, 060102502
Unit Price (€ / mtr.)
0.3451 € *
Available in 7 Days: 46,605 mtr. - if ordered today
Total Price:
34.51 € *
Price list
Quantity
Price per unit*
100 mtr.
0.3451 €
500 mtr.
0.2975 €
1000 mtr.
0.2618 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 060102502, Kabeltronik
Flexible, PVC-insulated stranded wire for wiring device assemblies and racks, as well as for telecommunications equipment and low-current systems. Not approved for heavy current applications outside of equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Colour | brown | |
| Halogen free | No | |
| Cable cross-section | 0.25 mm² | |
| Rated voltage | 900 V | |
| Outer diameter | 1.3 mm | |
| Cable structure | 14 x 0.15 mm | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 2.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
