XHP-5 | JST

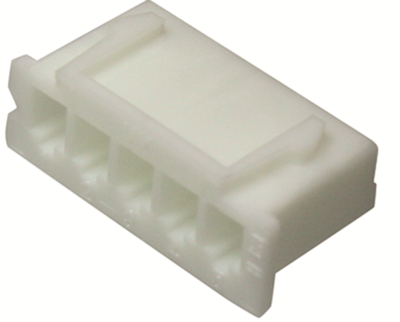

Socket housing, 5 pole, pitch 2.5 mm, straight, natural, XHP-5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0797 € *
Available: 22,972 pcs.
Socket housing, XHP-5, JST
Highly reliable, versatile 2.5 mm pitch wire-to-board connector with an assembled board height of 9.8 mm for low profile applications.
Features
- Original double-leaf contact design
- Box-shaped shrouded header
- The 4 pin version conforms to JEMA's Home Automation (HA terminal) standards
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 5 pole | |
| Grid | 2.5 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Number of rows | 1 | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
