S3B-PH-K-S (LF)(SN) | JST

Pin header, 3 pole, pitch 2 mm, angled, gray, S3B-PH-K-S (LF)(SN)

Order No.: 71F5372
EAN: 4099891009151
MPN:
S3B-PH-K-S (LF)(SN)
Series: pH
JST

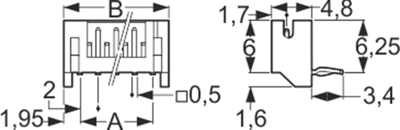

S3B-PH-K-S (LF)(SN) JST PCB Connection Systems Image 1
S3B-PH-K-S (LF)(SN) JST PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.1190 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
0.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.1190 €

PH connectors, 2.0 mm series, type JST

Rated current: 2.0 AUC. Rated voltage: 100 V AC/DC. Dielectric strength: 800 VAC (60 s). Contact resistance (new state): max. 10 mohm. Insulation resistance: min. 1000 Mohm. Operating temperatures: - 25 to +85 °C. Certifications: UL, CSA.

Through-hole type shrouded headers, side entry, for PCB assembly.

Housing material: PA 66, UL 94 V-0. Color: plain colored (white). Connections: brass, copper-undercoated, tinned.

Technical attributes (type, number of poles, dimension A, dimension B): S3B-PH-K-S (LF)(SN), 3-pole, A 4.0 mm, B 7.9 mm

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Colour gray
Contact type pin
contact surface tin-plated
Rated voltage 100 V
Rated current 2 A
Orientation angled
Pin number 3 pole
Grid 2 mm
Type of locking Yes
Logistics
Country of origin MY
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
