PHR-4 | JST
Socket housing, 4 pole, pitch 2 mm, straight, natural, PHR-4
Unit Price (€ / pc.)
0.0536 € *
Available: 35,538 pcs.
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0536 €
50 pcs.
0.0226 €
100 pcs.
0.0214 €
500 pcs.
0.0190 €
1000 pcs.
0.0167 €
*incl. VAT plus shipping costs
Subject to prior sale

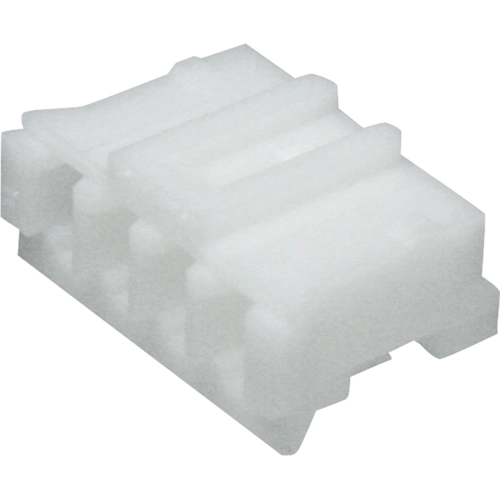

Socket housing, PHR-4, JST
KR connector as the core, according to using multi-harness insulation displacement connection by an automatic IDC machine, a holder for making a dual-row socket, a corresponding dual-row header, a header for wire-to-wire connection and so on, the high-density mounting of harnesses such as complicated shape is enabled.
Features
- Multi-IDC-harnesses are possible
- Cost reduction
- Two types of circuit layouts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Grid | 2 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 2 A | |
| Number of rows | 1 | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Electrical equipment take-back |  |
