EHR-3 | JST

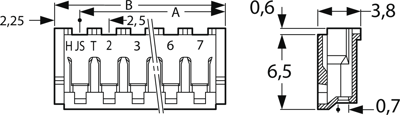

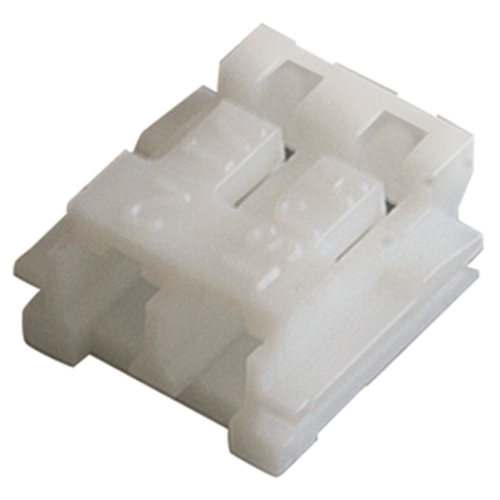

Socket housing, 3 pole, pitch 2.5 mm, straight, natural, EHR-3
Unit Price (€ / pc.)
0.0262 € *
Available: 36,991 pcs.
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0262 €
200 pcs.
0.0250 €
1000 pcs.
0.0214 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, EHR-3, JST
This is a 2.5 mm pitch low-profile, wire-to-board connector that meets the needs of high density PCB requirements and provides design flexibility in all sorts of electronic devices. The top entry type is 3.8 mm in thickness and 8.1 mm in height. The low profile design helps to save space. The contact design provides a high-reliability connection. The EH series also offers excellent harness workability and is easy to mate and unmate.
Features
- Low-profile, space-saving design
- High-reliability contacts
- Shaped to prevent misinsertion
- Excellent workability in the wire harness assembly and mating process
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 3 pole | |
| Grid | 2.5 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Number of rows | 1 | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Electrical equipment take-back |  |
