R470045 | JBC

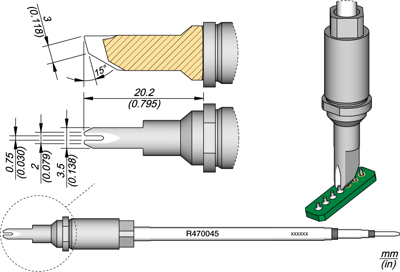

Soldering tip, special form, (T x W) 3 x 20.2 mm, R470045
Unit Price (€ / pc.)
58.6194 € *
Standard delivery time from the manufacturer is: On Request
Drag cartridge, R470045, JBC
This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes. It is appropriate for Through-Hole drag soldering connectors or components, even with pins connected to ground planes. The new design features a square cross_x0002_section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thickness | 3 mm | |
| Width | 20.2 mm | |
| Peak type | special form | |
| Suitable for | TR470, TRA470 | |
| Version | soldering tip |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85159080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
