R470024 | JBC

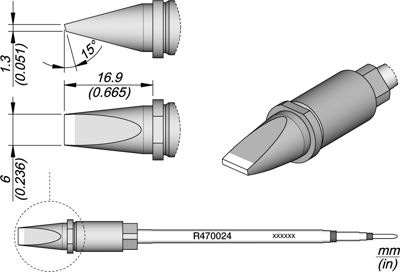

Soldering tip, chisel shaped, (T x W) 1.3 x 16.9 mm, R470024

Order No.: 10L6831
EAN: 8427327478947
MPN:
R470024
Series: R470
R470024 JBC Soldering tips, desoldering tips and hot air nozzles
Image may differ
Unit Price (€ / pc.)
58.6194 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
58.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
58.6194 €

Chisel cartridge, R470024, JBC

This cartridge is designed for the use in Automated Processes with high-power requirements. The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

Technical specifications
Peak type chisel shaped
Thickness 1.3 mm
Width 16.9 mm
Version soldering tip
Suitable for TR470, TRA470
Logistics
Customs tariff number 85159080
Country of origin ES
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
