R245023 | JBC

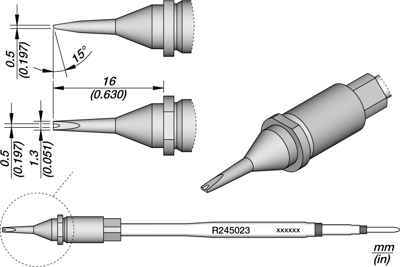

Soldering tip, special form, Ø 0.5 mm, (W) 16 mm, R245023
Unit Price (€ / pc.)
38.7702 € *
Standard delivery time from the manufacturer is: On Request
Chisel cartridge, R245023, JBC
This cartridge is designed for the use in Automated Soldering Processes. The groove in the cartridge allows easy access of the dispensed tin to the solder joint. The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | soldering tip | |
| Peak type | special form | |
| diameter | 0.5 mm | |
| Width | 16 mm | |
| Suitable for | TR245, TRA245 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85159080 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
