R245016 | JBC

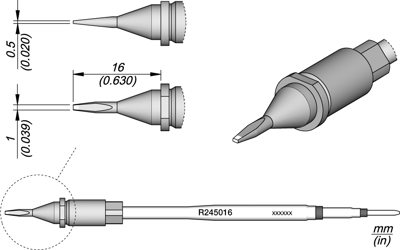

Soldering tip, chisel shaped, Ø 0.5 mm, (T x W) 1.6 x 16 mm, R245016

Order No.: 10L6809
EAN: 8427327550131
MPN:
R245016
Series: R245
R245016 JBC Soldering tips, desoldering tips and hot air nozzles
Image may differ
Unit Price (€ / pc.)
38.7702 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
38.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.7702 €

Chisel cartridge, R245016, JBC

This cartridge is designed for the use in Automated Soldering Processes. The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

Technical specifications
Width 16 mm
Peak type chisel shaped
Version soldering tip
Suitable for TR245, TRA245
diameter 0.5 mm
Thickness 1.6 mm
Logistics
Country of origin ES
Customs tariff number 85159080
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
