C245160E | JBC

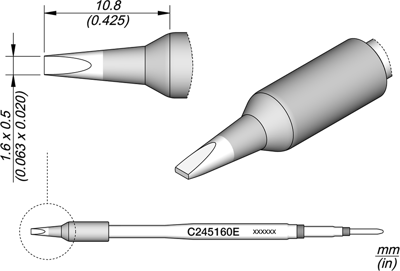

Soldering tip, chisel shaped, (T x W) 0.5 x 10.8 mm, C245160E

Order No.: 10L6702
EAN: 8427327486379
MPN:
C245160E
Series: C245E
C245160E JBC Soldering tips, desoldering tips and hot air nozzles
Image may differ
Unit Price (€ / pc.)
38.675 € *
Available: 1 pcs.
Total Price:
38.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.675 €

Chisel cartridge, C245160E, JBC

This product has been designed with a thicker iron layer what makes this tip ideal for tough and repetitive works in mass production. A thicker iron layer reduces the thermal efficiency. It is appropriate for general soldering purposes and they are perfect for both SMD components or for applications with high power requirements such as ground plane soldering.

Technical specifications
Filter Property Value
Version soldering tip
Peak type chisel shaped
Thickness 0.5 mm
Width 10.8 mm
Suitable for T245
Logistics
Property Value
Customs tariff number 85159080
Country of origin ES
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
