AL-2A | JBC
Soldering station with solder feeder, JBC AL-2A, 130 W, 230 V
Order No.: 10L6040
EAN: 8427327255067
MPN:
AL-2A
As an alternative, we recommend the following item:
Soldering station with solder feeder, JBC ALE-210VA, 150 W, 230 VAC
Order No.: 10L6178
Manufacturer: JBC
per pc. 1,702.3426 € *
*incl. VAT plus shipping costs

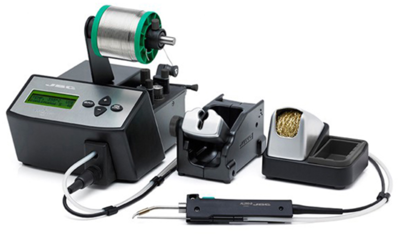

Soldering station with solder feeder, AL-2A, JBC
Digital soldering station with automatic solder wire feeding, D = 0,9 - 1,0 mm, soldering tip C250-403 + tray AL-SD, temperature range = 90 - 450 °C, 5 fixed temperatures storable, 230 / 24 V - 140 / 75 W (heat-up/nominal power)possibility to choose between continuous and step-by-step operation, capacity: up to 2 kg, feed speed: 17 mm/s, length and speed of feed can be selected, ESD compatible.
Technical specifications
| Version | soldering station with solder feeder | |
| ESD protection | Yes | |
| Power | 130 W | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 90 °C | |
| Voltage | 230 V | |
| Connector | type C plug |
Download
Logistics
| Country of origin | ES |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
